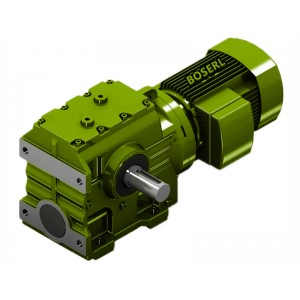

減速機S59-Y2.2KW S59-Y0.55KW

手機掃描查看

S59減速機電機功率：S59-Y0.18KW,S59-Y0.25KW,S59-Y0.37KW,S59-Y0.55KW,S59-Y0.75KW,S59-Y1.1KW,S59-Y1.5KW,S59-Y2.2KW,S59-Y3KW（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。

S59減速機減速比：201比,184.8比,158.12比,137.05比,128.10比,110.73比,94.08比,84.00比,71.75比,69.39比,67.20比,63.80比,56.61比,54.59比,47.32比,44.22比,38.23比,32.48比,29.00比,24.77比,23.20比,20.33比,19.54比,17.62比,16.47比,14.24比,12.10比,10.80比,9.23比,8.64比,7.28比,6.83比（兩個減速機組合，可獲得更大的減速比） 。

S59減速機輸出轉數：7轉,7.6轉,8.9轉,10轉,11轉,13轉,15轉,17轉,20轉,21轉,22轉,25轉,26轉,30轉,37轉,43轉,48轉,57轉,60轉,69轉,72轉,79轉,85轉,98轉,116轉,130轉,152轉,162轉,192轉,205轉,219轉,260轉,294轉,350轉（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）。
S59減速機輸出扭矩：88N.m,93N.m,95N.m,98N.m,100N.m,146N.m,166N.m,168N.m,169N.m,215N.m,245N.m,265N.m,285N.m,290N.m,295N.m（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，型號加大,或者兩個組合使用）。

S59減速機安裝尺寸：輸出軸+鍵Φ33（可定做），高189*寬208（帶輸出軸）*長187

S58減速機電機型號：S59-Y0.18KW,S59-Y0.25KW,S59-Y0.37KW,S59-Y0.55KW,S59-Y0.75KW,S59-Y1.1KW,S59-Y1.5KW,S59-Y2.2KW,S59-Y3KW,S59DV63S4,S59DV71S4,S59DV80S4,S59DV90L4,S59DV100S4,S59DM63L4,S59DM63S4,S59DM71S4,S59DM80S4,S59DM90L4,S59DM100S4,S59DV63L4,S59DRN63S4,S59DRN71S4,S59DRN80S4,S59DRN90L4,S59DRN100S4,S59DV63L4,S59DT63S4,S59DT71S4,S59DT80S4,S59DT90L4,S59DT100S4,S59DT63L4,S59DRE63S4,S59DRE71S4,S59DRE80S4,S59DRE90L4,S59DRE100S4,S59DRE63L4,S59DVE63S4,S59DVE71S4,S59DVE80S4,S59DVE90L4,S59DVE100S4,S59DVE63L4,S59DRS63S4,S59DRS71S4,S59DRS80S4,S59DRS90L4,S59DRS100S4,S59DRS63L4,S59DR63S4,S59DR71S4,S59DR80S4,S59DR90L4,S59DR100S4,S59DR63L4,S59DV63M4,S59DV71M4,S59DV80M4,S59DV90M4,S59DV100M4,S59DRN63M4,S59DRN71M4,S59DRN80M4,S59DRN90M4,S59DRN100M4,S59DT63M4,S59DT71M4,S59DT80M4,S59DT90M4,S59DT100M4,S59DVE63M4,S59DVE71M4,S59DVE80M4,S59DVE90M4,S59DVE100M4,S59DRE63M4,S59DRE71M4,S59DRE80M4,S59DRE90M4,S59DRE100M4,S59DRS63M4,S59DRS71M4,S59DRS80M4,S59DRS90M4,S59DRS100M4,S59DM63M4,S59DM71M4,S59DM80M4,S59DM90M4,S59DM100M4,S59Y63M4,S59Y71M4,S59Y80M4,S59Y90M4,S59Y100M4。
