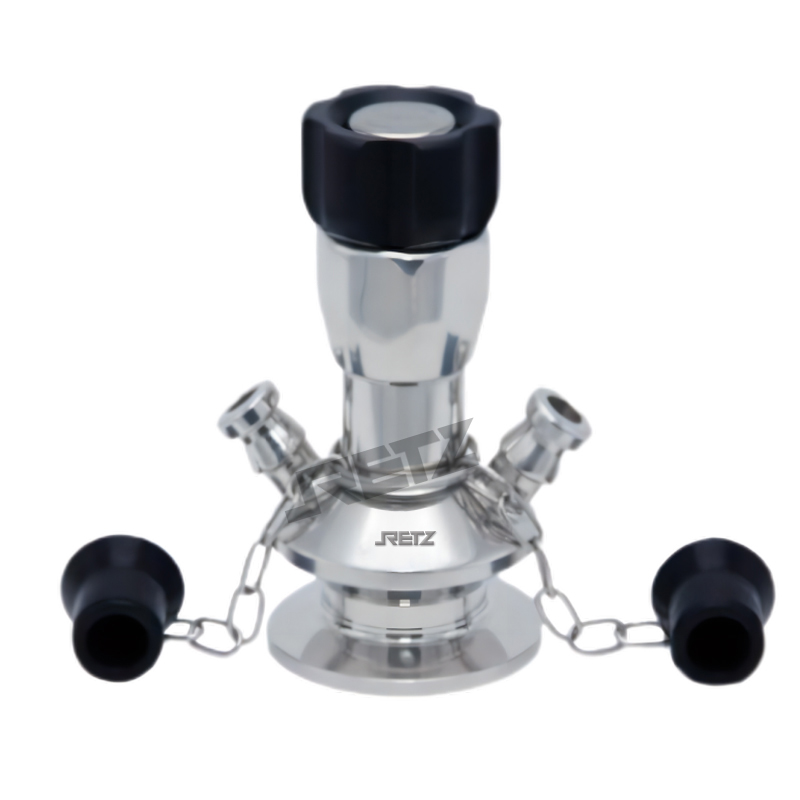

品牌：RETZ/我們一直致力于流體控制領域的持續創新，始于2005……進口微生物無菌取樣閥專為食品、制藥和生物技術等行業而設計，每次取樣前后進行消毒，閥體和連接件由一整塊材料制成，從而可避免出現裂紋和焊接氣孔retz The imported microbial sterile sampling valve is designed specifically for industries such as food, pharmaceuticals, and biotechnology. It is disinfected before and after each sampling, and the valve body and connecting parts are made of a single piece of material to avoid cracks and welding pores

閥閉合：消毒 Valve closure: disinfection

當閥關閉時，打開閥口這間的通道以便進行消毒，如果使用蒸汽消毒，則建議在出口上使用小型壓力釋放閥 When the valve is closed, open the channel between the valve ports for disinfection. If steam disinfection is used, it is recommended to use a small pressure relief valve on the outlet

閥開啟：取樣 Valve opening: sampling

當閥打開時，閥桿和膜片密封將收縮，從而允許液體通過。通過使用標準附件，可能進行無菌取樣。這些附件專用于確保進行消毒時的條件合適（2bar-121℃）。絕熱材料可避免燙傷。

When the valve opens, the valve stem and diaphragm seal will contract, allowing liquid to pass through. By using standard attachments, sterile sampling may be performed. These accessories are specifically designed to ensure that the conditions for disinfection are suitable (2bar-121 ℃). Insulation materials can prevent burns

滅菌：sterilization

1、將蒸汽軟管連接到閥的上部連接管上 Connect the steam hose to the upper connecting pipe of the valve

2、打開蒸汽源，讓它流過閥以進行滅菌。在121℃下持續1分鐘 Open the steam source and let it flow through the valve for sterilization. Continue at 121 ℃ for 1 minute

3、關閉蒸汽源 Turn off steam source

4、移走蒸汽軟管，把一個無菌橡膠塞或無菌蒙板安裝到上部連接管上 Remove the steam hose and install a sterile rubber stopper or sterile mask onto the upper connecting pipe

●規格SIZE:3/8 -2"

●最高溫度Max temperature：-20到130℃(取決于密封材質)(不銹鋼執行器)

●最高壓力Max pressure：10bar

●閥體材質material quality：SS304、 316L

●膜片材料Diaphragm：EPDM、PTFE

●連接方式Connection method：焊接、卡箍、外螺紋 Welding, clamps, external threads

●操作方式operating mode：手動和氣動 Manual and pneumatic
